How to identify the generation of a D-BOX haptic system

This article provides helpful tips for identifying the generation of your haptic system, which can be useful during troubleshooting.


Generation Device Controller

KAI-1P: Only used with G1:

KCA/KCA-T: Only used with G1:

KCU-1P:  Connected to KCA or KCA-T (Used for G1 and G3):KCU

ACM: 2 x RJ45 ports located at the back of the ACM:



KCU-1P: Connected to first ACM (Used for G1 and G3):

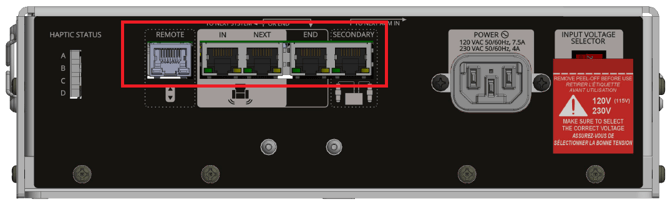

ACM: 5 x RJ45 ports located on the side of the ACM:


G5 Not applicable

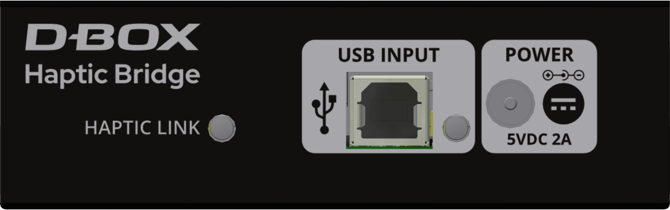

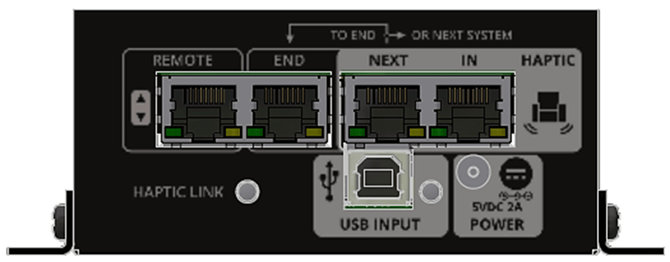

Haptic Bridge: Connects to all actuators
