How to connect your haptic seat with a HaptiSync Hub

Learn how to connect your D-BOX haptic seat to a HaptiSync Hub by following the steps outlined below.

Caution : always use the Cat.5E shielded cable provided with the seat to assure the connections.

HaptiSync_Hub_connection

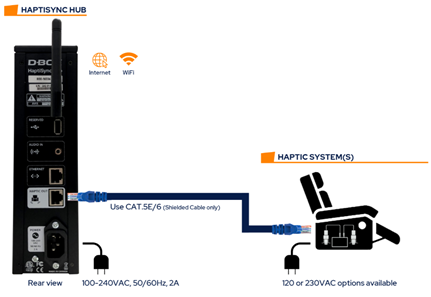

The exact connection depends on your theater configuration and product. Please choose from the list below to see the proper connection scheme.

Haptic seat product	Configurations

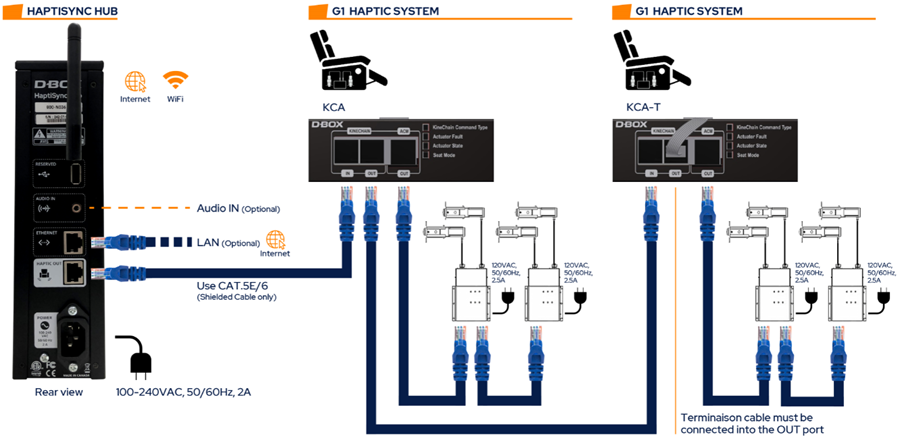

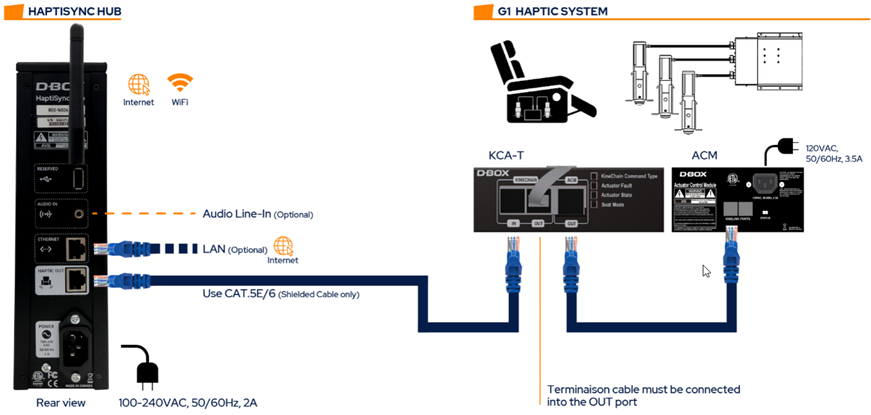

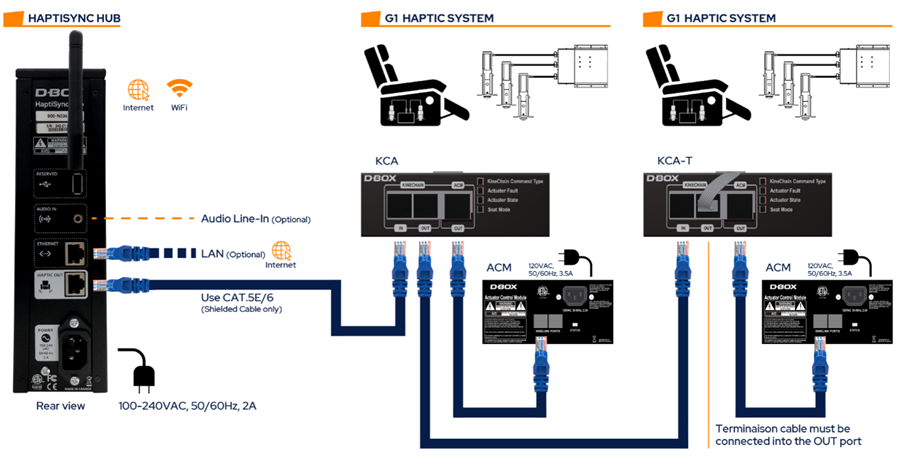

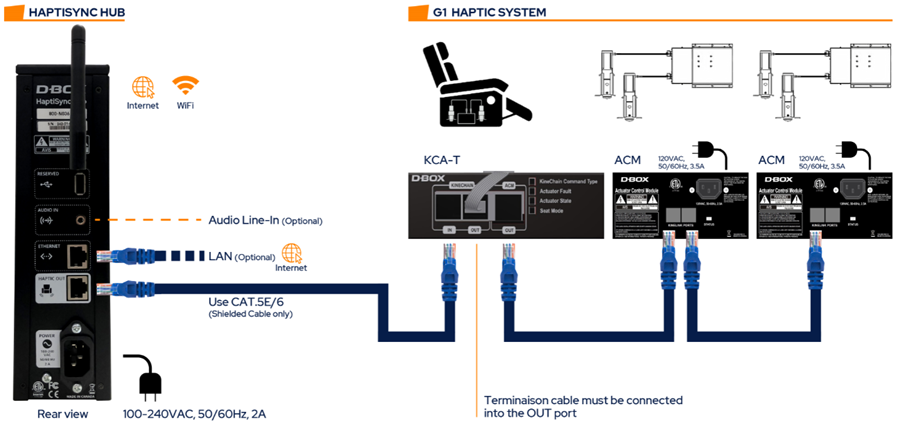

G1 Haptic System	Single Seat Configuration (2-3 actuators) Single Seat Configuration (4 actuators) Multiple Seats Configuration (2-3 actuators) Multiple Seats Configuration (4 actuators)

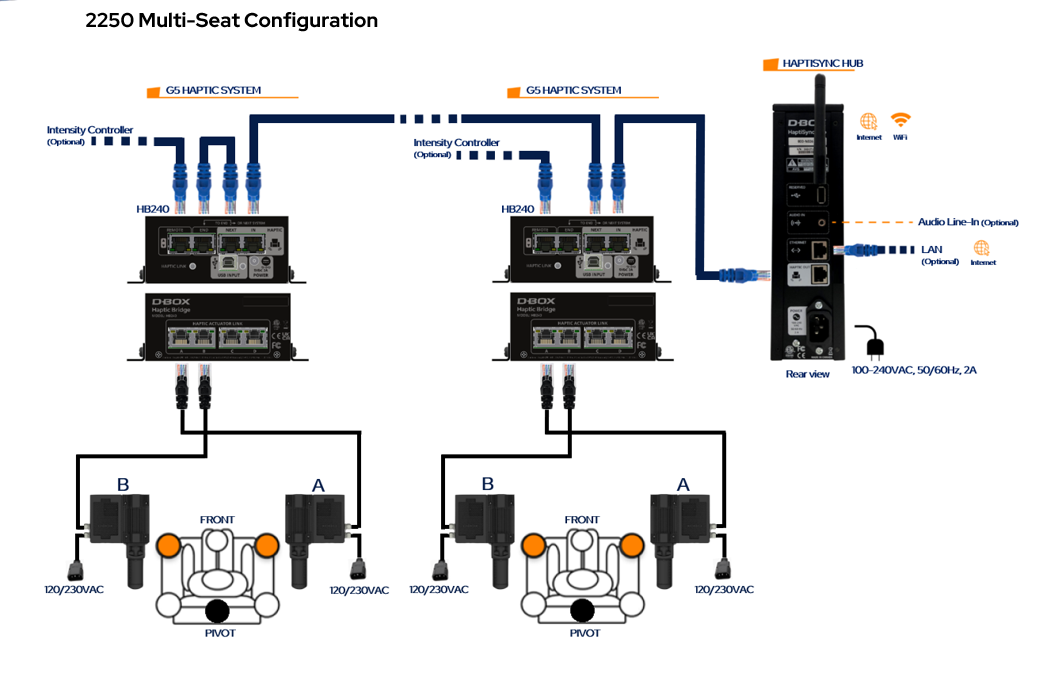

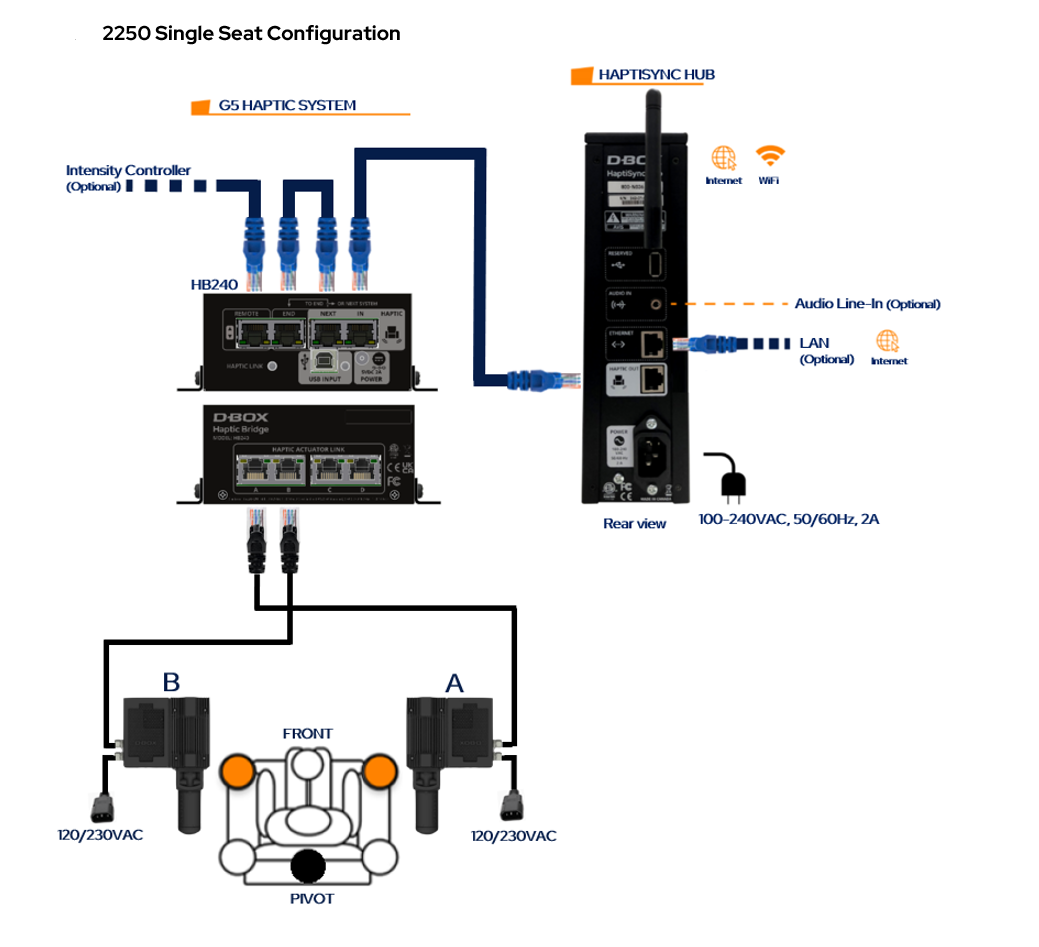

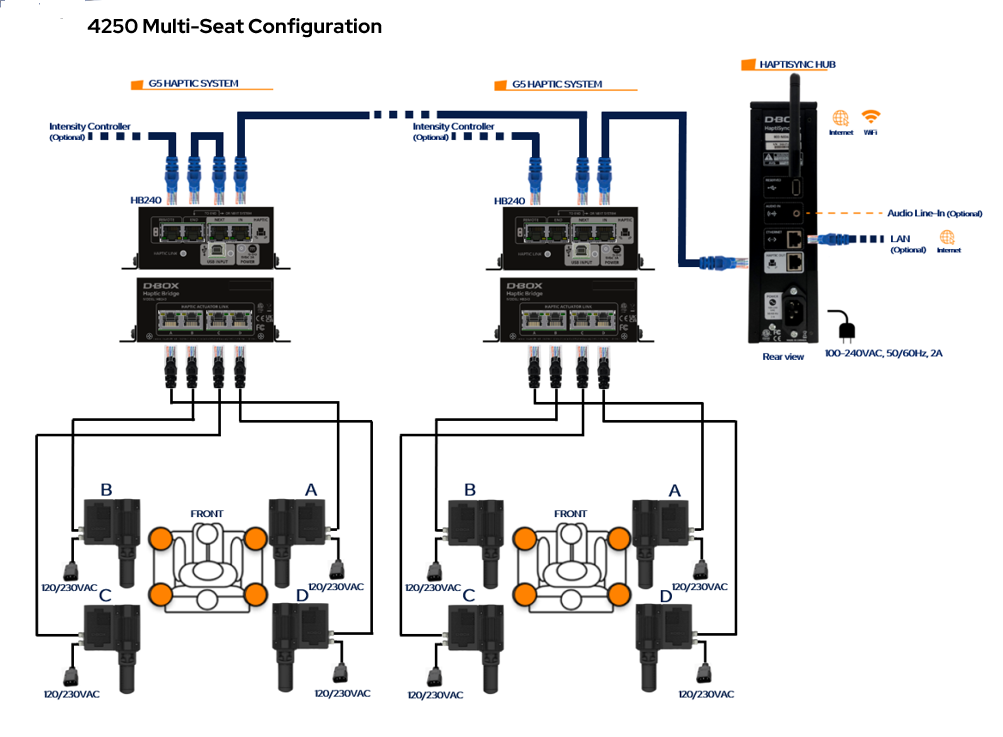

G3 Haptic System	2250i (2 actuators) Single Seat Configuration 2250i (2 actuators) Multiple Seats Configuration 3250i (3 actuators) Single Seat Configuration 3250i (3 actuators) Multiple Seats Configuration 4250i/4400i (4 actuators) Single Seat Configuration 4250i/4400i (4 actuators) Multiple Seats Configuration

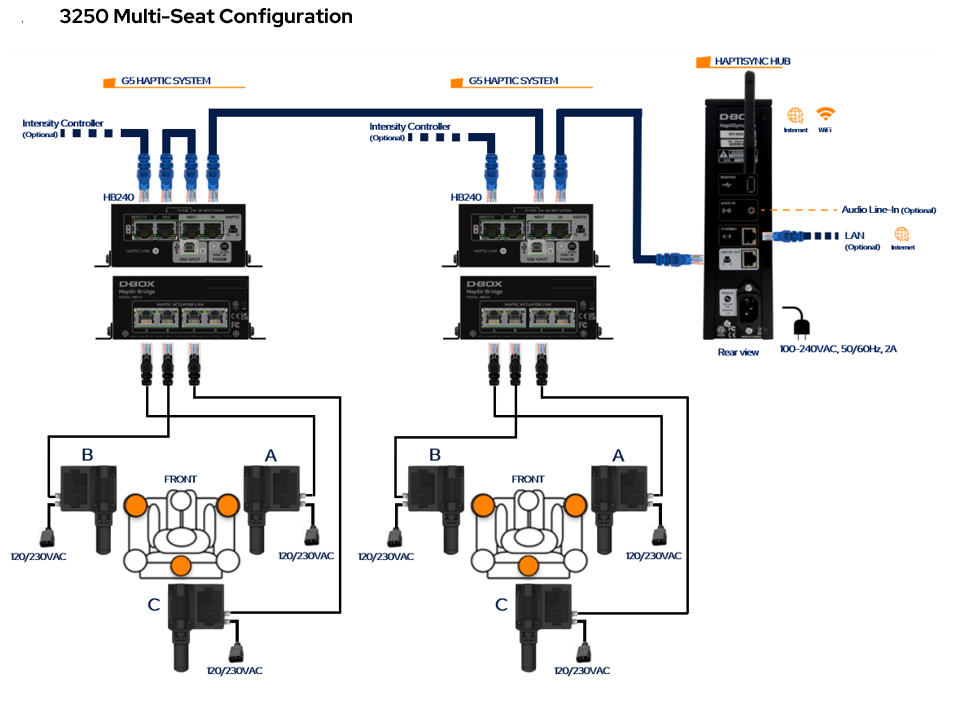

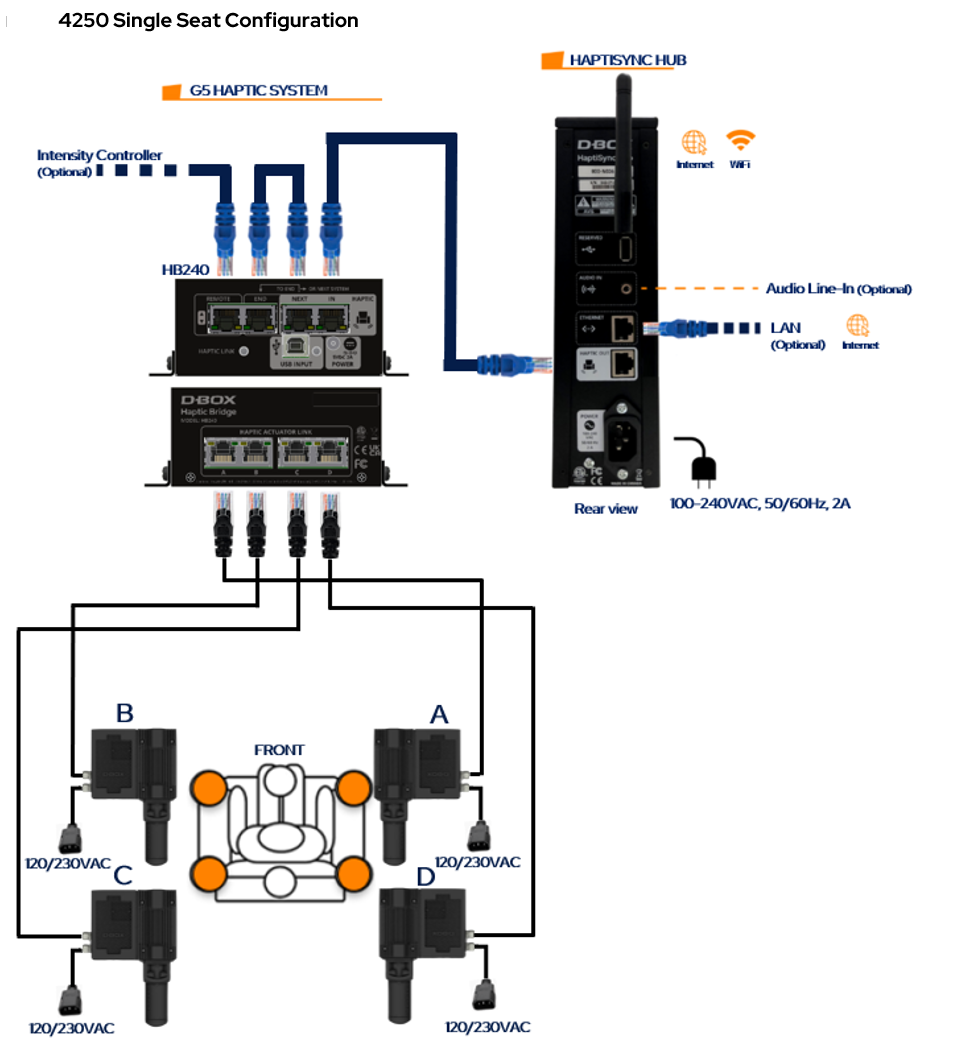

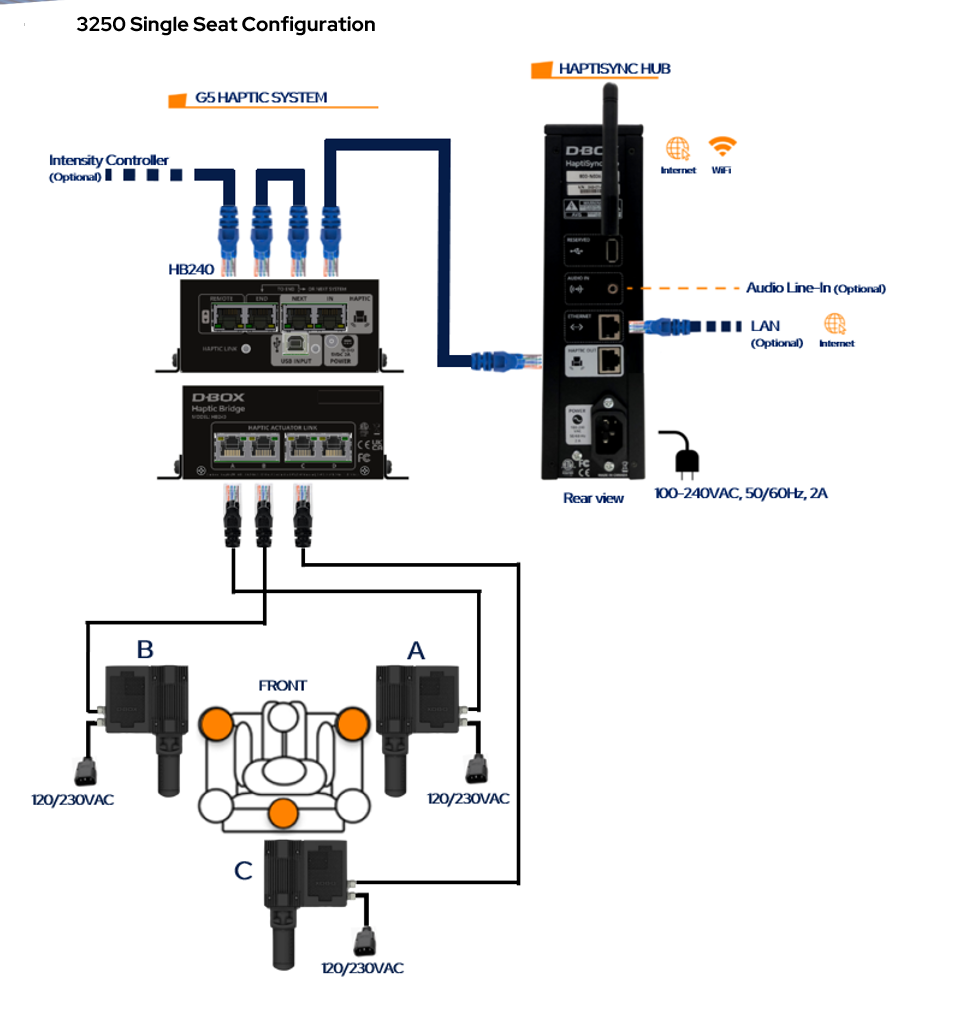

G5 Haptic System	2250i (2 actuators) Single Seat Configuration 2250 (2 actuators) Multiple Seats Configuration 3250 (3 actuators) Single Seat Configuration 3250 (3 actuators) Multiple Seats Configuration 4250 (4 actuators) Single Seat Configuration 4250 (4 actuators) Multiple Seats Configuration
Jaymar (with back panel) seats	Jaymar (with back panel) Single Seat Configuration Jaymar (with back panel) Multiple Seats Configuration
